• Present the need for version control
• Basic concepts of Git
• Use cases of Git

What is not the goal

• Convince you that git is the only solution
• Go through everything together

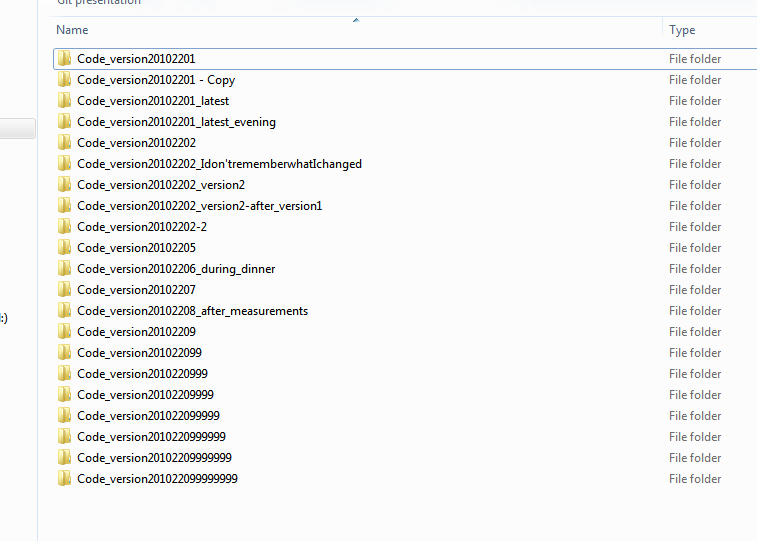

• Why is version control important
• What is version control?
• Key concepts of Git
• What can git do for you?
• What to git?
• Social git
• Resources

Software aiming at storing different versions of files in a structured way

• Every change is documented
• History accessible
• Everything structured

• Not a back-up system
• Not the solution to all your problems

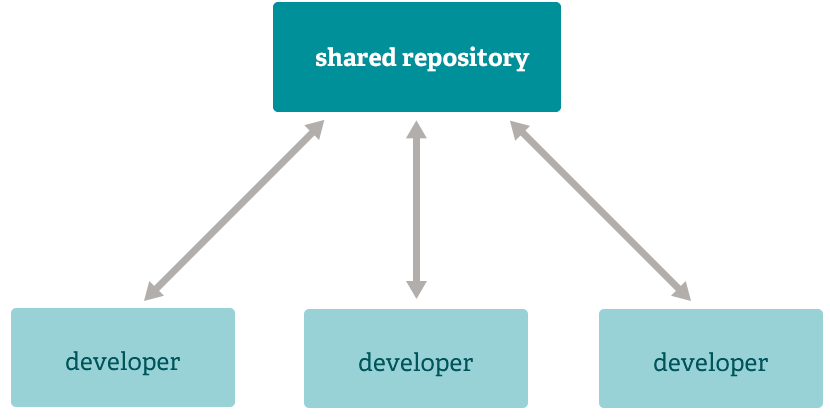

• Client-server model

  • CVS (Concurrent Versions System)
  • SVN (Subversion)
  • ...

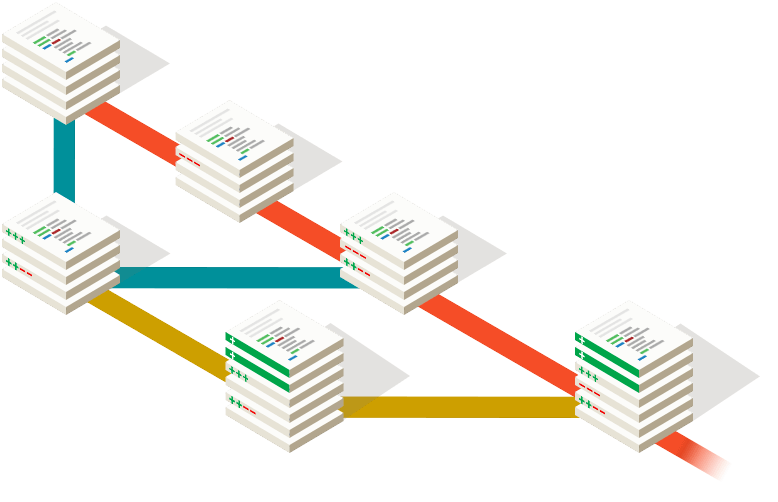

• Distributed model

  • Mercurial
  • Git
  • ...

• Distributed version control system
• Open source (GNU GPL2)
• Initial release: 2005
• Multiplatform (Linux, Win, Mac OS etc...)
• Initialy designed for the linux kernel

A collection of files that are being tracked for changes

• Text files (ideally)
• Binary files (not optimal, but possible)
• Folders, subfolders...

A subset of changed files, that will be included in the new version

• Not all revisions are mature for inclusion

A collection of changes in individual files (i.e. version)

• Identifying hash
• Who
• When
• Commit message
• Changes made

Copy of the repository located in other locations

• Multiple remotes for each repository
• Each remote contains all history
• Users can push changes to and fetch changes from remotes

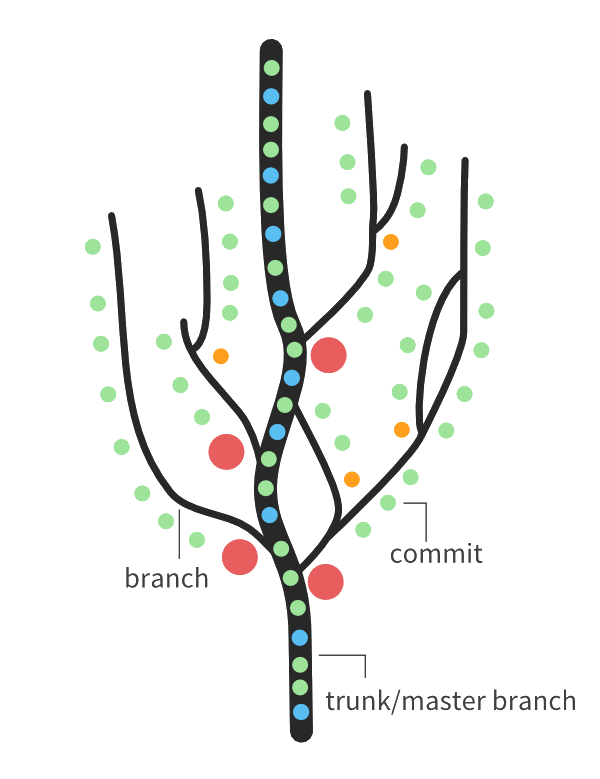

An independent line of development

• Branches have common history
• Branches can have sub-branches
• Branches can be merged

• Install git (http://www.git-scm.com/)

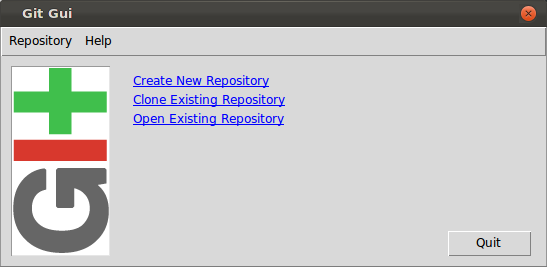

• Choose a good GUI
  • Git gui
  • Github gui
  • TortoiseGit (right-click menu)
  • ...
• Command line

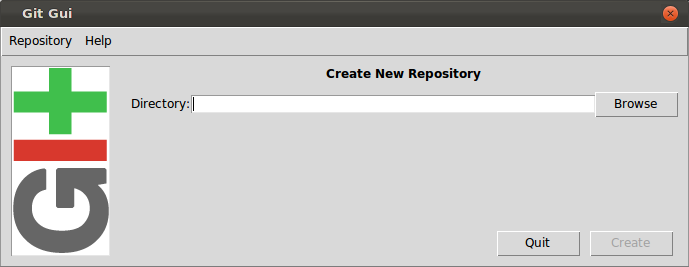

Go to folder that contains the files for the repository

git init

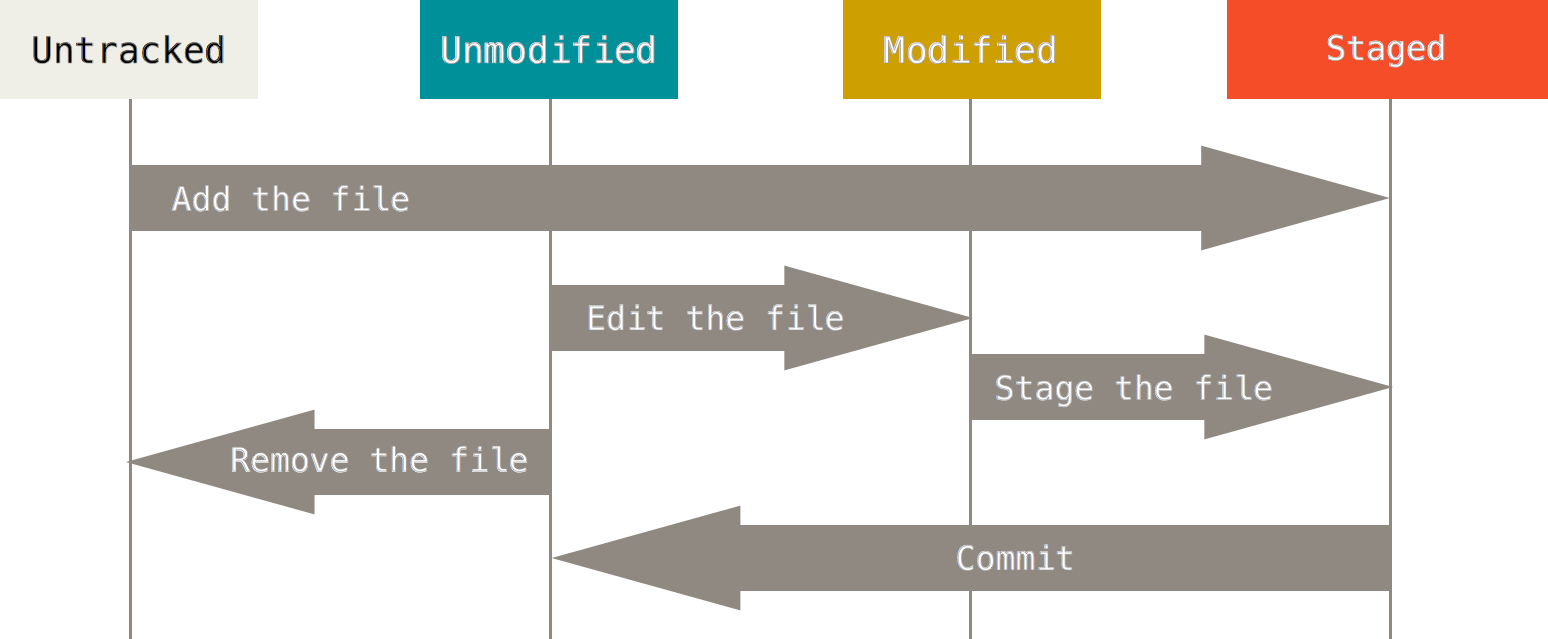

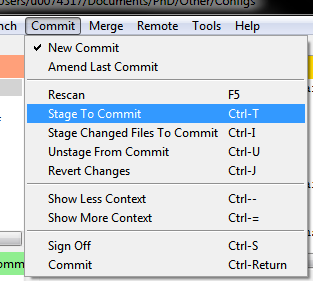

When inside the repository

git stage file1 file2 ... // (Adds file1 and file2 to staging area)
git stage .               // (Adds all files and subfolders in current folder)
git stage folder/         // (Adds all files in folder)

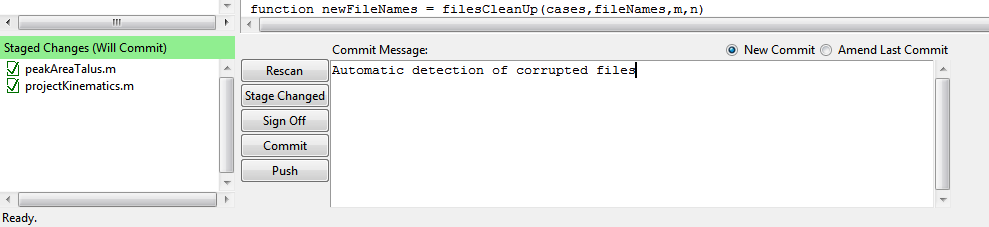

git commit -m "Your commit message here"

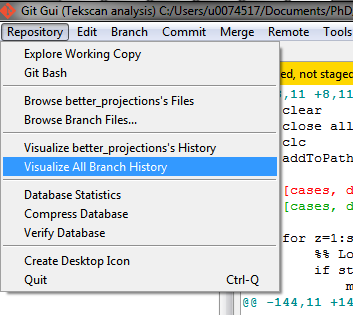

git log

commit bc878077638d507e0acd895bb595cc94526ec542
Author: Tassos Natsakis (nakano)
Date:   Fri Apr 3 16:00:23 2015 +0200

    "Adding function that reads pressure data and exports them in a CSV file,
    with the coordinates that they should be applied to, in a FE simulation"

commit dff63cd96c10756ff6c429ca0e705bc6ca25228c
Author: Tassos Natsakis (nakano)
Date:   Fri Apr 3 15:59:37 2015 +0200

    "Finding some more small bugs introduced when I was working in a hurry"
    ...

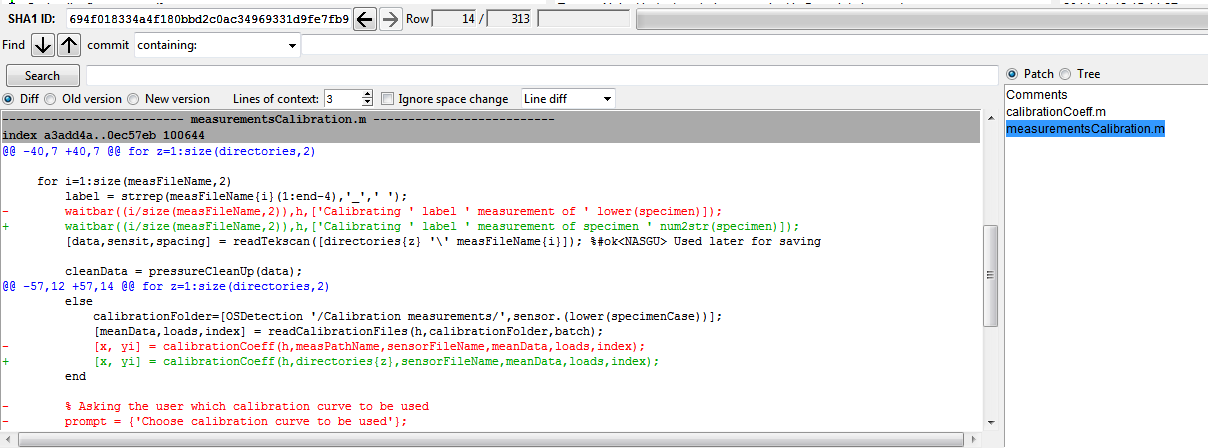

git diff (filename) commit1 commit2

diff --git a/peakAreaTalus.m b/peakAreaTalus.m
index 4c5a518..4eab54a 100644
--- a/peakAreaTalus.m
+++ b/peakAreaTalus.m
@@ -1,10 +1,10 @@
 function pressureArea =...
     peakAreaTalus (data, rows, cols, measPathName, legendNames,...
-    rowSpacing, colSpacing)
+    rowSpacing, colSpacing, toPlot)

git checkout commit_hash

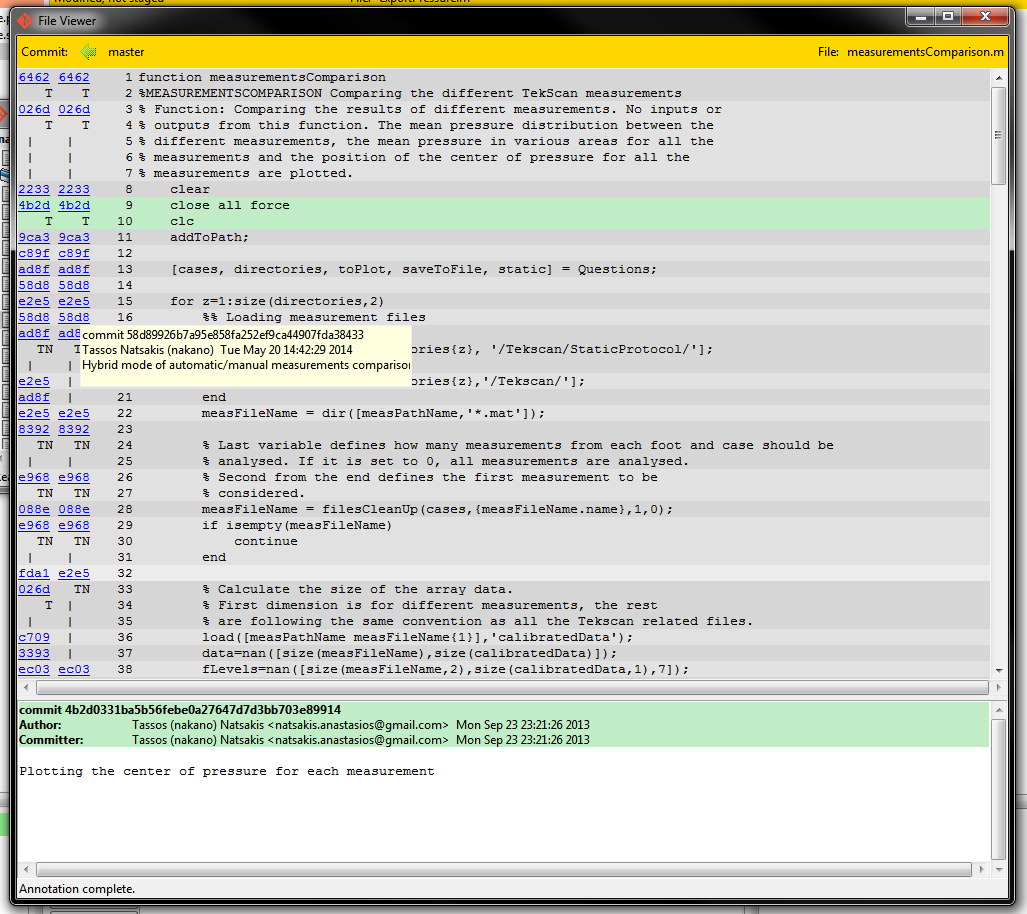

git blame filename

d96873d1 (jhbecker) 2012-06-10 13:39:56 +0200 108)
d96873d1 (jhbecker) 2012-06-10 13:39:56 +0200 109) \DeclareComplementaryOptio...
9c369fc5 (Wannes)   2013-01-10 13:17:15 +0100 110) % Cover options
9c369fc5 (Wannes)   2013-01-10 13:17:15 +0100 111) \DeclareStringOption{cover...
c813ae79 (Wannes)   2013-03-23 15:28:20 +0100 112) \DeclareBoolOption{coversh...
c813ae79 (Wannes)   2013-03-23 15:28:20 +0100 113) \DeclareComplementaryOptio...
9c369fc5 (Wannes)   2013-01-10 13:17:15 +0100 114)
07c6d277 (Yves)     2010-09-02 22:53:52 +0200 115) % Default values
c813ae79 (Wannes)   2013-03-23 15:28:20 +0100 116) \setkeys{adsphd}{info=true...

You want to copy an existing repository and go on working on it?

git clone https://location/of/the/repository
git clone git@gitlab.mech.kuleuven.be:u0074517/git-overview.git //This presentation

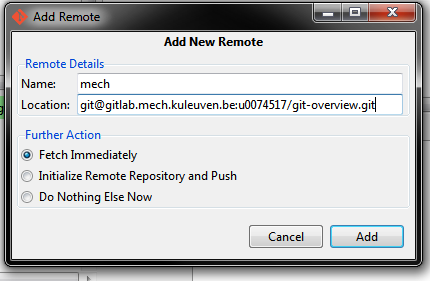

git remote add name location //Add remote repository with location and name
git remote add mech git@gitlab.mech.kuleuven.be:u0074517/git-overview.git

git push name branch //Push changes to remote
git pull name branch //Pull changes from remote

• Remote repositories with a nice web user interface
• Access control
• Wiki pages
• Issues

• GitLab (https://gitlab.mech.kuleuven.be)
• Open Source
• Used by more than 100,000 organisations

• Login with your MECH account
• Set-up your SSH keys
  • Generate a key
  • Profile settings
  • SSH keys
  • Add SSH Key (you choose the name)
• Create projects
• Create remotes on your computer

• For ZAP?
  • Keeps code documented, when PhD leaves
  • Easier involvement in projects (through issues)
• For ATP?
  • Can be used as technical documentation
  • All code is stored in one location
  • Easy access control to the code (for new team members)
• For BAP?
  • Helps you keep your projects cleaner
  • Check differences between versions
  • Fall-back to earlier versions

Git documentation: git command --help

http://www.git-scm.com: Downloads, documentation, references, useful links...

https://try.github.io: Learn basics of git for free in 30' (interactive)

https://backlogtool.com/git-guide: Master the Git version control system

https://www.atlassian.com/git: Rather extended git tutorial

https://onlywei.github.io/explain-git-with-d3: Visualising git concepts

Got stuck? Just google it!
